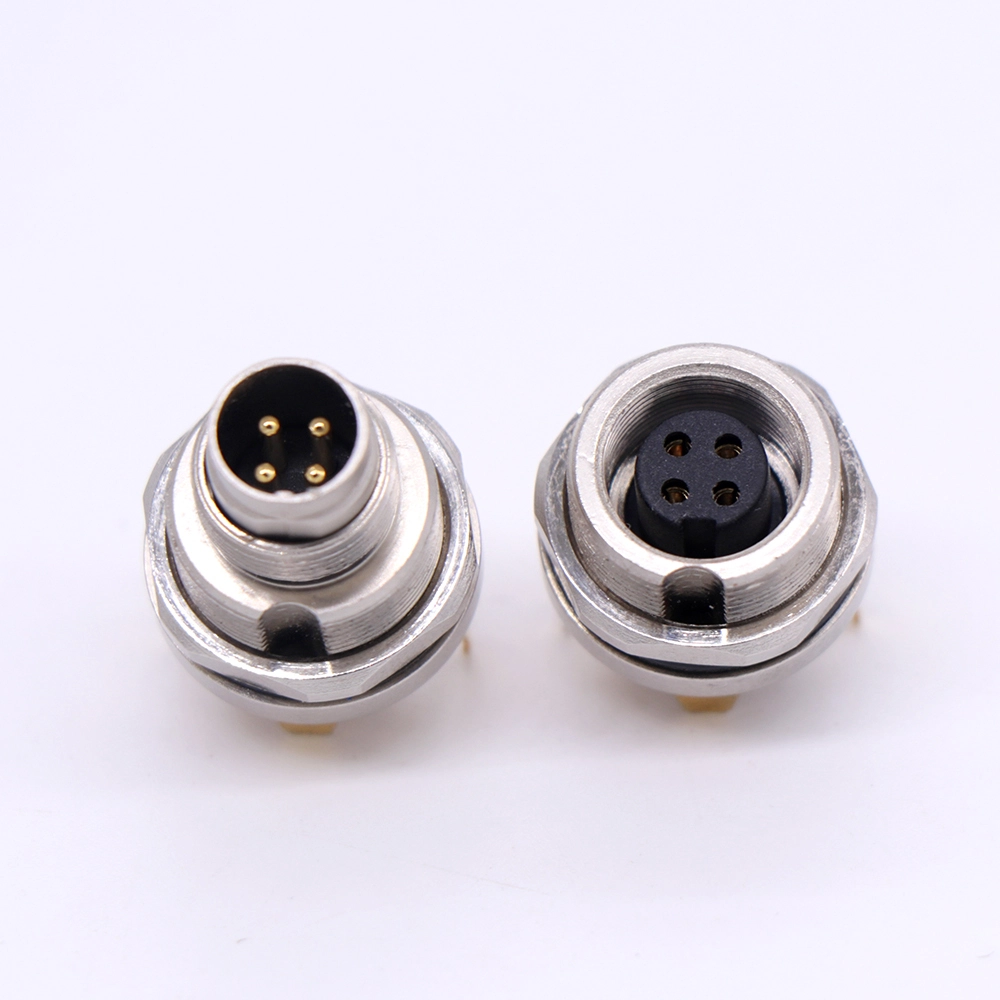

M9H9 plug-in 180° aviation socket
Product display
pin type
straight head
A-code: 2/3/4/5/7/8-core
PCB
hole type
straight head
A-code: 2/3/4/5/7/8-core
PCB
Core hole location diagram
A coding
Product details
Brass nickel plated shell
The metal shell is sturdy and durable, resistant to collision and deformation, and the surface nickel plating enhances corrosion resistance. The 48H salt spray test effectively extends the product's service life in harsh environments.
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
Temperature rating |
contact resistance |
insulation resistance |
shield |
waterproof rating |
|
-25℃ ~ +85℃ |
≤10mΩ |
≥100MΩ |
Yes |
IP67 |
Product Application
