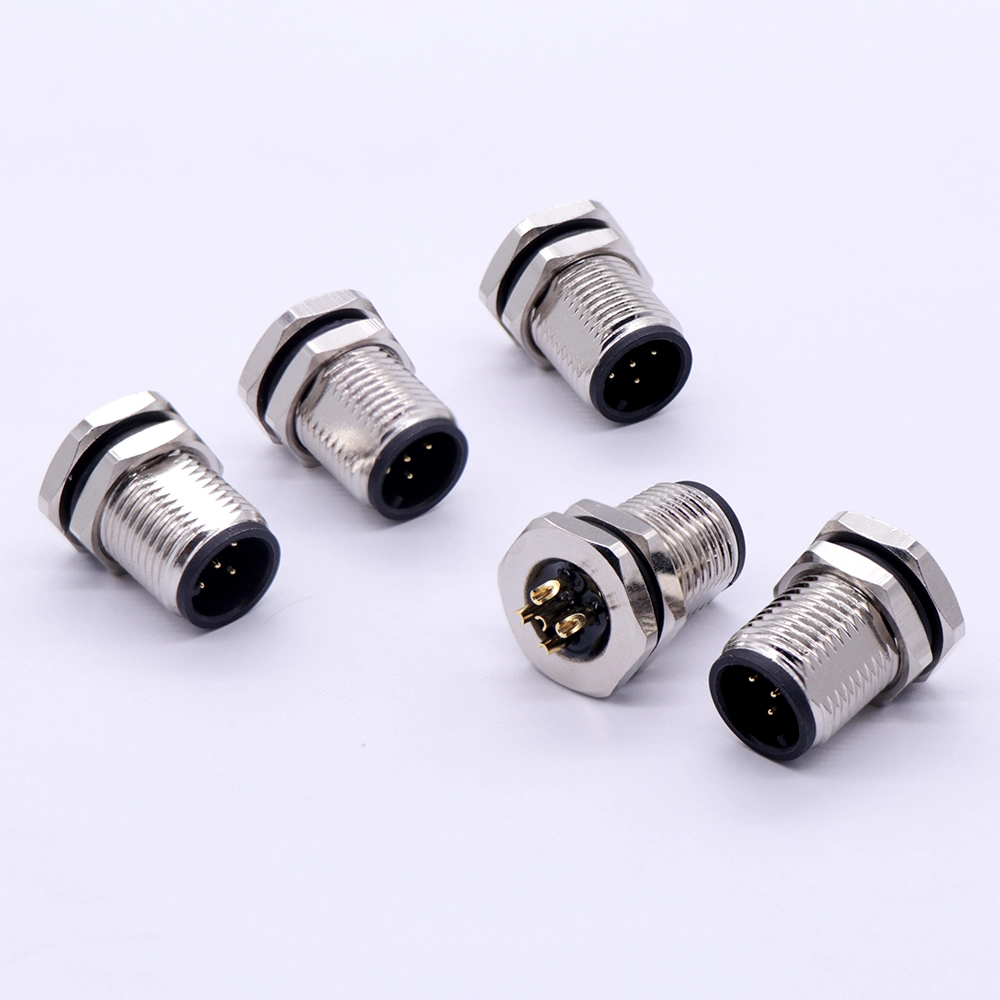

M12F circular metal plate front-locking aviation socket, solded/PCB
Product display
B- code: 4/5- core
C- code: 3- core
D- code: 4-core Ethernet /PROFINET CAT5 (100 Mbps)/ 5-core
PCB/ soldering - can be wired
Cable length: Customization supported
B- code: 4/5- core
C- code: 3- core
D- code: 4-core Ethernet /PROFINET CAT5 (100 Mbps)/ 5-core
PCB/ soldering - can be wired
Cable length: Customization supported
B- code: 4/5- core
C- code: 3- core
D- code: 4-core Ethernet /PROFINET CAT5 (100 Mbps)/ 5-core
PCB/ soldering - can be wired
Cable length: Customization supported
Core hole location diagram
A coding & B coding & C coding & D coding
Product details
Brass nickel plated shell
The metal shell is sturdy and durable, resistant to collision and deformation, and the surfAace nickel plating enhances corrosion resistance. The 48H salt spray test effectively extends the product's service life in harsh environments.
Gold plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
M12 Technical Specifications |
|||||
|
Execution standard |
Temperature rating |
Contact resistance |
Insulation resistance |
Shield |
Waterproof rating |
|
IEC61076-2-101 |
-25℃ ~ +85℃ |
≤10mΩ |
≥100MΩ |
Yes |
IP67 |
Product Application
