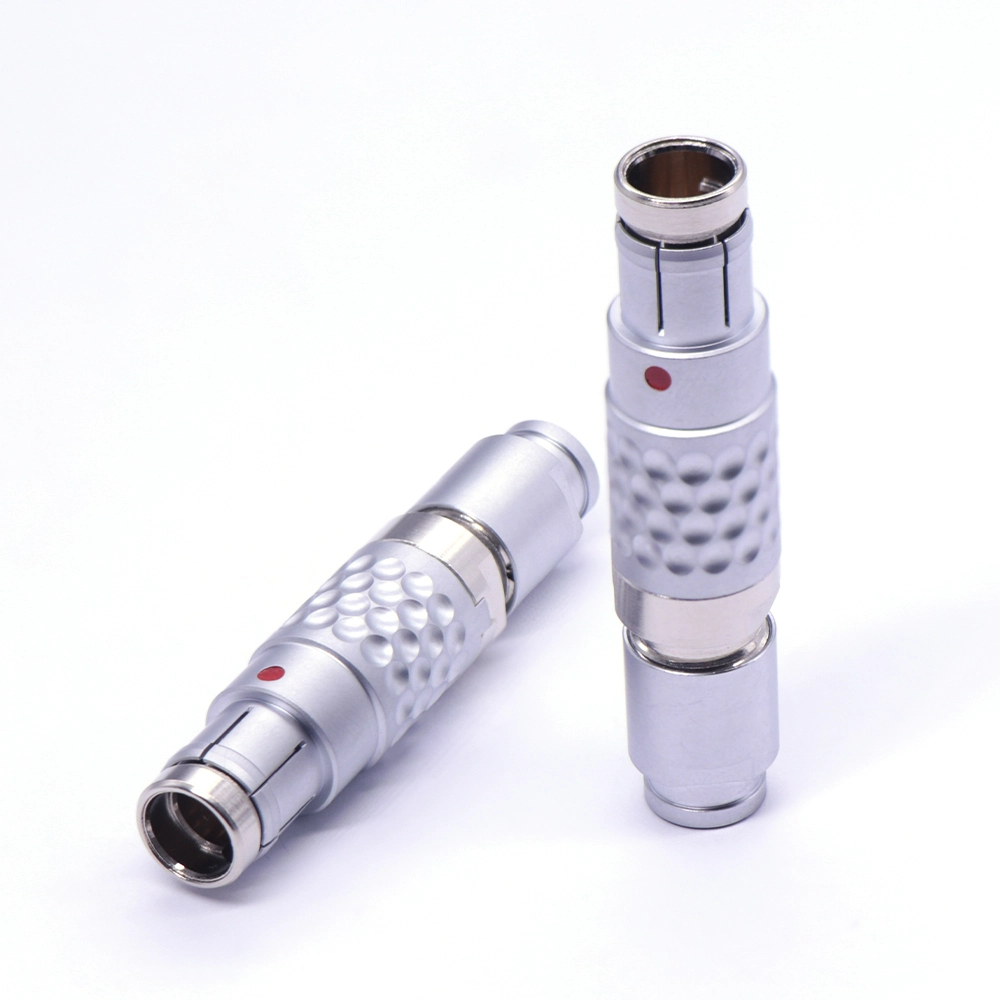

Push-pull self-locking S4 0F/1F 1-16-pin circular metal aviation plug, wire-soldered type
Product display
pin plug
push-pull self-locking S4 straight head
0F: 1/2/3/4/5/6/7/9-core
1F: 2/3/4/5/6/7/8/10/14/16 core
soldered - can be wired
cable length: supports customization
Core hole location diagram
0F & 1F
Product details
Chromed brass casing
The metal shell is sturdy and durable, resistant to collision and deformation, and the surface nickel plating enhances corrosion resistance. The 144H salt spray test effectively extends the product's service life in harsh environments.
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
Temperature rating |
contact resistance |
insulation resistance |
shield |
waterproof rating |
|
-25℃ ~ +150℃ |
≤10mΩ |
≥100MΩ |
Yes |
IP67 |
Product Application
