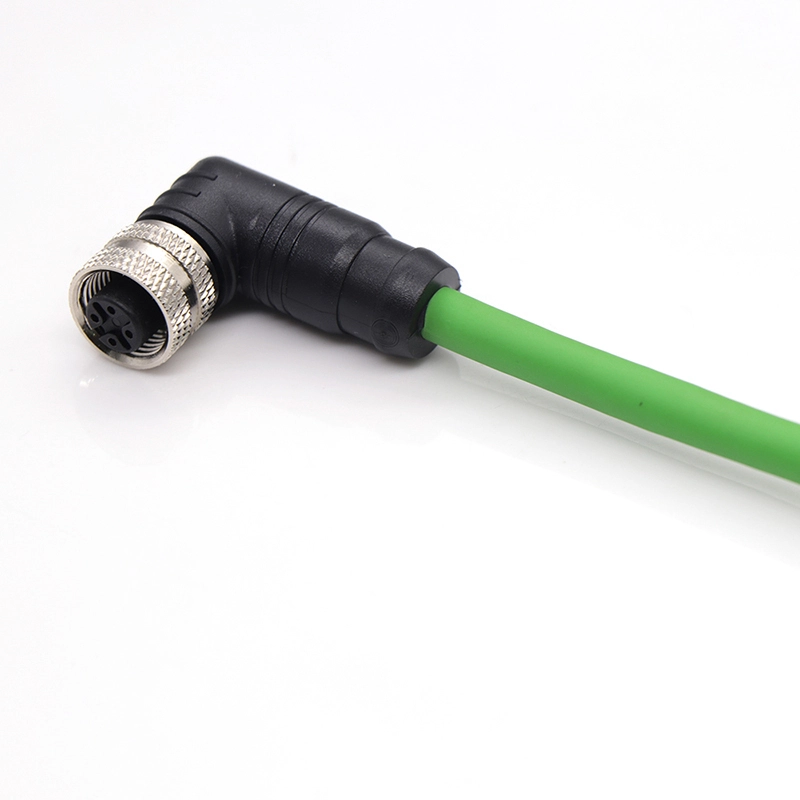

Short Shielded Harness M12I1 Injection Molded Male Female Plug
Product display
B-Coding: 4/5 pins
C-Coding: 3 pins
D-Coding: 4 pins, Ethernet/PROFINET CAT5 (100 Mbps)/5 pins
Soldered - With wires available
Cable length: Customizable
B-Coding: 4/5 pins
C-Coding: 3 pins
D-Coding: 4 pins, Ethernet/PROFINET CAT5 (100 Mbps)/5 pins
Soldered - With wires available
Cable length: Customizable
B-coding: 4/5 pins
C-coding: 3 pins
D-coding: 4-pin Ethernet/PROFINET CAT5 (100 Mbps)/5-pin
Solderable - With optional cable
Cable length: customizable
B-coding: 4/5-pin
C-coding: 3-pin
D-coding: 4-pin Ethernet/PROFINET CAT5 (100 Mbps)/5-pin
Solderable - With wire
Cable length: customizable
Core hole location diagram
A coding & B coding & C coding & D coding
Product details
Brass nickel plated shell
The metal shell is sturdy and durable, resistant to collision and deformation, and the surface nickel plating enhances corrosion resistance. The 48H salt spray test effectively extends the product's service life in harsh environments.
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃.
Technical Specifications
|
M12 Technical Specifications |
|||||
|
Execution standard |
Temperature rating |
Contact resistance |
Insulation resistance |
Shield |
Waterproof rating |
|
IEC61076-2-101 |
-25℃ ~ +85℃ |
≤10mΩ |
≥100MΩ |
Yes |
IP67 |
