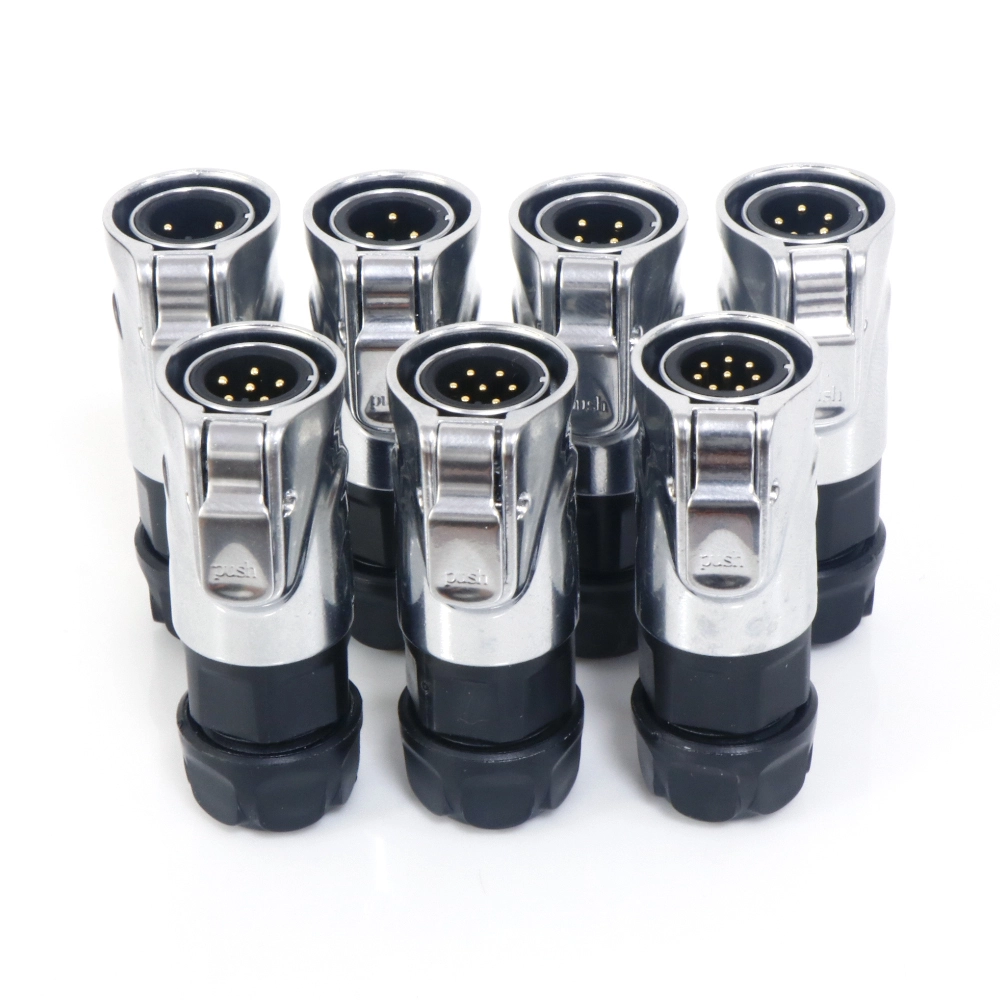

2-8 pins circular waterproof connector, soldered and assembled wire end, aviation plug, plastic/metal
Product display
pin plug
2/3/4/5/6/7/8-core
soldered
pin plug
2/3/4/5/6/7/8-core
soldered
Core hole location diagram
CORE
Product details
engineering plastic PBT casing
sturdy and durable, resistant to impact deformation and corrosion, with 48-hour salt spray testing, effectively extending the product's service life in harsh environments.
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
LC12技术参数 |
|||||
|
Certification standards |
Temperature rating |
salt spray |
Impact resistant |
Mechanical life |
waterproof rating |
|
Complies with TUV and UL certification standards |
-40℃~+80℃ |
PH6.5-7.2,NaCl,5% 48H |
294m/s² |
1700 |
IP67 |
