2-8-pin circular metal waterproof connector, solder plate terminal, rear lock nut base

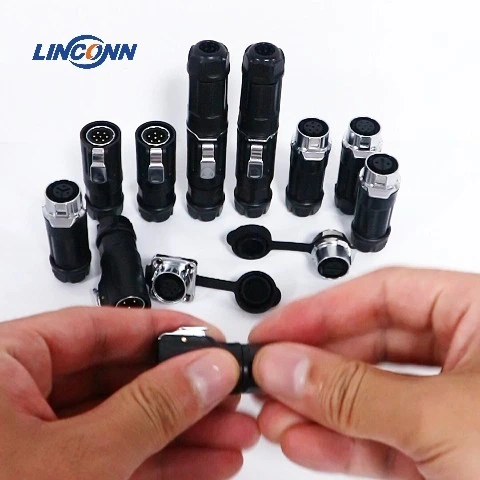

Product display
shielding
hole plug
2/3/4/5/6/7/8-core
soldering
Core hole location diagram
CORE
Product details
zinc alloy/engineering plastic PBT casing
The metal shell is sturdy and durable, resistant to collision and deformation, and the surface nickel plating enhances corrosion resistance. The 48H salt spray test effectively extends the product's service
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
LC12技术参数 |
|||||
|
Certification standards |
Temperature rating |
salt spray |
Impact resistant |
Mechanical life |
waterproof rating |
|
Complies with TUV and UL certification standards |
-40℃~+80℃ |
PH6.5-7.2,NaCl,5% 48H |
294m/s² |
1700 |
IP67 |
