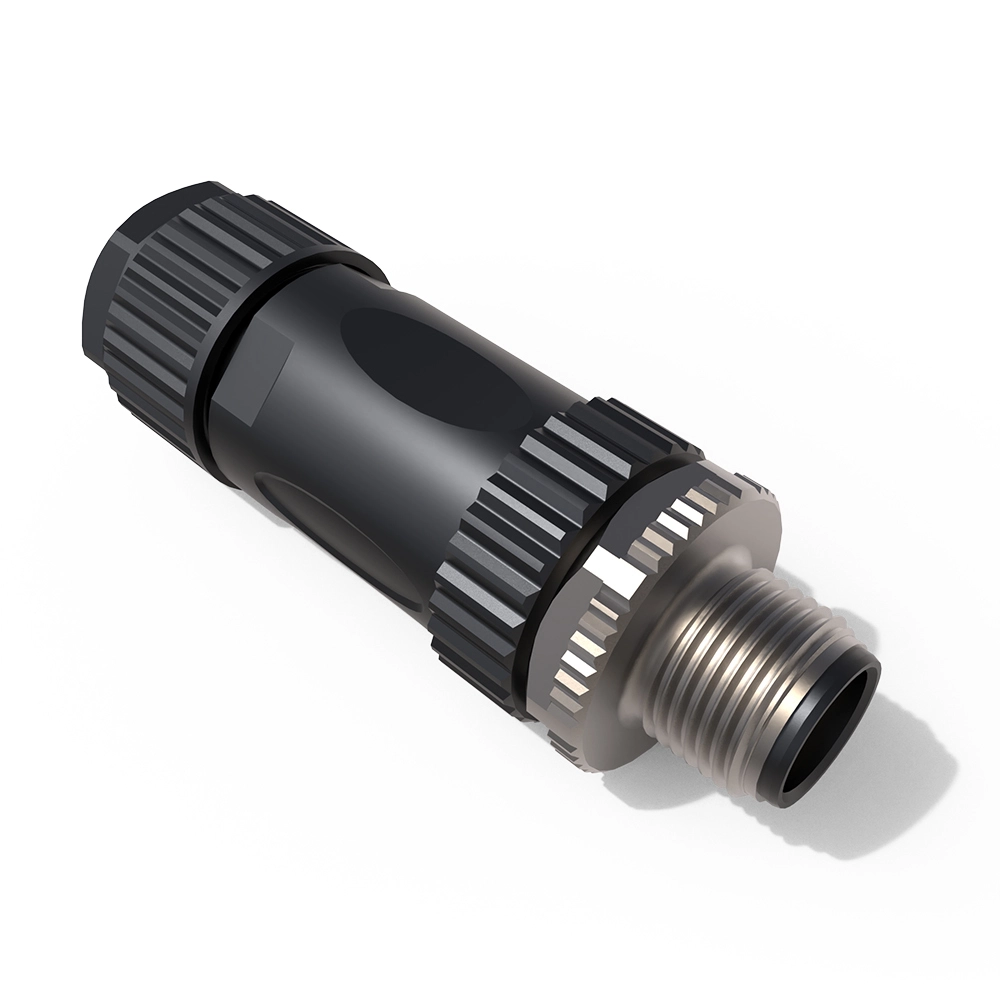

P12K5S circular plastic aviation plug, assembled with screw lock, straight head, male+female
Product display
D-code: 4-core Ethernet /PROFINET CAT5 (100 Mbps)/ 5-core
Screw connection
D-code: 4-core Ethernet /PROFINET CAT5 (100 Mbps)/ 5-core
Screw connection
Core hole location diagram
A coding & B coding & C coding & D coding
Product details
Nickel-plated zinc alloy + nylon black casing
The metal shell is sturdy and durable, resistant to collision and deformation, and the surface nickel plating enhances corrosion resistance. The 48H salt spray test effectively extends the product's service life in harsh environments.
Gold plated pins/sockets
The gold plating process at the output point gives the product stronger transmission stability and a lifespan of over 500+insertions and removals
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
M12 Technical Specifications |
|||||
|
Execution standard |
Temperature rating |
Contact resistance |
Insulation resistance |
Shield |
Waterproof rating |
|
IEC61076-2-101 |
-25℃ ~ +85℃ |
≤10mΩ |
≥100MΩ |
Yes |
IP67 |
Product Application
