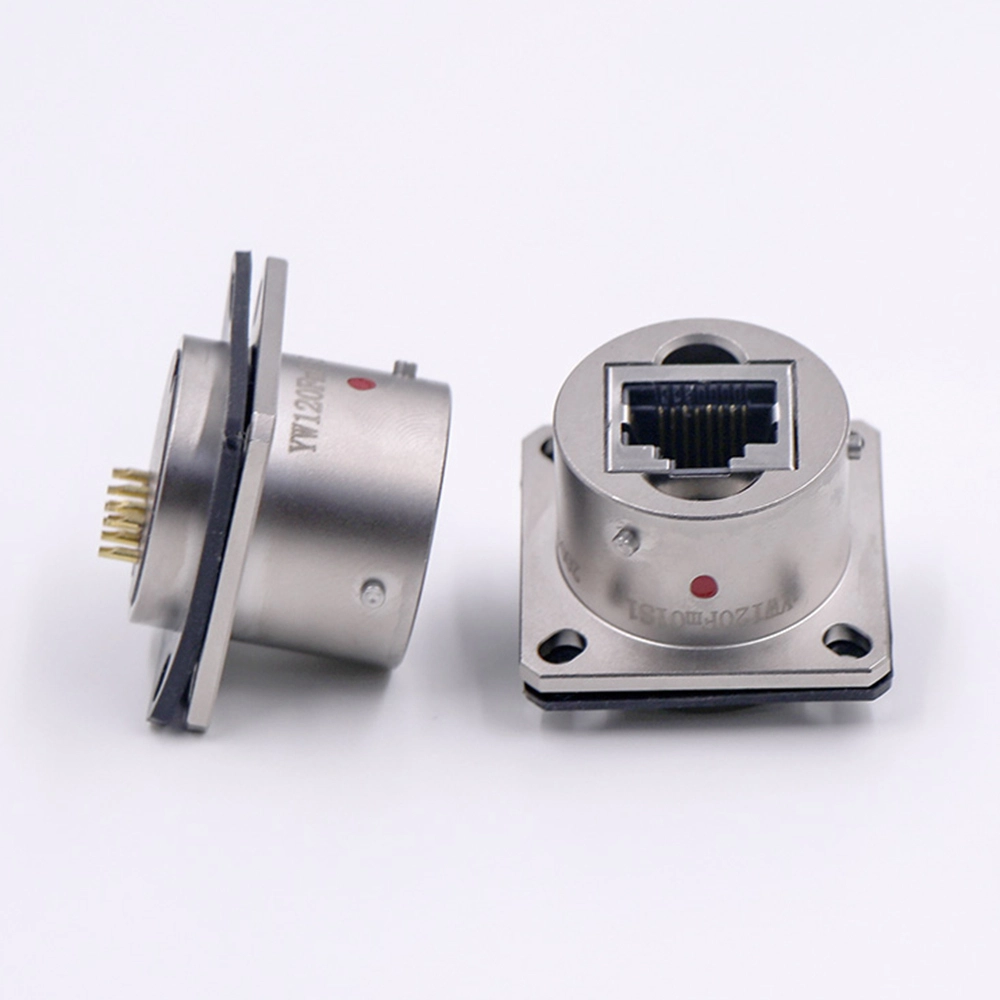

YW Aluminum Alloy Socket RJ45 (Cat 5e Crystal Head)
Product display
welding
Product details
Brass chrome-plated shell
The metal shell is sturdy and durable, resistant to collisions and deformation. The chrome plating on the surface enhances corrosion resistance. It has passed 48 hours of salt spray testing, effectively extending the product's service life in harsh
Gold-plated pins/sockets
The gold-plated contact process gives the product greater transmission stability and a mating durability of 500 cycles.
High and low temperature resistance
The insulation parts of the product are processed with high-quality raw materials, which not only have excellent insulation performance, but also can be used normally in harsh environments ranging from -25 ℃ to+85 ℃
Technical Specifications
|
|
|||||
|
Insertion and removal lifespan |
Temperature rating |
contact resistance |
insulation resistance |
shield |
waterproof rating |
|
＞100 |
-25℃ ~ +85℃ |
≤20mΩ |
≥5000MΩ |
Yes |
IP67 |
Product Application
